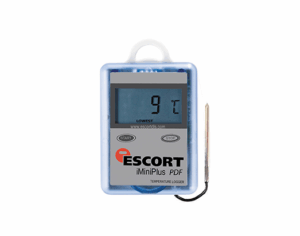

MP-OE-D-8-L Mini Datalogger Thermometer with USB Cable
General
Many high value life science products need to be transported in dry ice to ensure the efficiency of the product. If the dry ice does not maintain the critical temperature in the region of -80 deg C, these high value products will not be suitable for use. Typical products for dry ice shipments are principally associated with life science products, many of which are listed below:
- Medical samples
- Ingredient medical samples
- Animal and human tissue
- Ingredients
- Pharmaceutical products
- Diagnostic specimens
- Organs
- Biological products
- Plasma
- Serums
- Enzymes
- Clinical trials
- Blood products
Specifications
| Range of measurement | (-100°C to +40 °C) -148 of to +104 °F |
|---|---|
| LCD Operating Range | (-20°C to +70 °C) -4 of to +158 °F |
| Sensors | External sensor only |
| Accuracy | Celsius: from -100 °C to -80 °C ±1.0 °C Fahrenheit: from -148 °F to -112 °F ±1.8 °F from – 80 °C to -10°C ±0.7 °C from -112 °F to +14 °F ±1.3 °F from -10°C to +40 °C ±0.6 °C from +14 °F to +104 °F ±1.0 °F |
| Resolution | 0.1 °C or 0.1 ºF |
| Sensor response time | External Sensor – T90 of 5 minutes in moving air |
| Memory Options | 8032 readings |
| Software | ESCORT Console |
| Sampling Frequency | 5 seconds –18 hours |
| Time and date | Real time clock accurate to 1 minute per month |
| Security | Password protected |
| Power Source | User replaceable lithium battery 3 V coin cell |
| IP Rating | IP64 (with DB9 cap on) |
| Size | 83 x 57 x 17 mm (excluding lug and external sensor) |
| Weight | 70 grams (including battery) |
| Case Material | Polycarbonate/ABS |
| Storage Temperature | -40 °C to + 70 °C (-40 °F to 158 °F) |
| Typical battery life | 1-2 years operating (depending on usage) |
| Buttons | Green= active, Red = Alarm |
| Response Time | Start & Stop button |
| Warranty | 24 months, excluding batteries |
