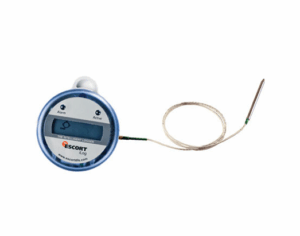

EI-1E-DN-32-L iLog Temperature Monitor & Datalogger
General
This temperature monitor has many convenience features that allows the user quickly and easily make informed decisions. iLog data loggers are compatible with Console Pro software, 0.1°C resolution for added accuracy, up to 32,000 readings, LCD display, and can be programmed in either Celsius or Fahrenheit. iLogs can also be fitted with 1 or 2 sensors in addition to a humidity sensor.
Specifications
| Temperature Range | Internal -40 to +70 ºC (-40 to 158 ºF) External -100 to +40 ºC ( -148 to 104 ºF) |
|---|---|
| Sensors | Internal & External (sensor length 1m) |
| Accuracy | ± 0.3 ºC |
| Resolution | 0.1 |
| Liquid Crystal Display | Software programmable – Operating Temp -20 to +70 ºC (-4 to 158 ºF) |
| Memory | 32,000 samples |
| Software | ESCORT Console (free to download via website) ESCORT Web Track (www.escortwebtrack.com) |
| Sampling Frequency | 1 second to 10 days |
| Time and date | Real time clock, accuracy better than 1 minute per month at ambient Multiple time zones supported |
| Security Password protected | (programmable using Escort Console software) |
| Power Source | User replaceable 3.6V ½AA lithium battery |
| IP Rating | IP66 (when external sensor is connected) |
| Size | Diameter 76mm Height 18mm |
| Weight | 68 grams (including battery) |
| Case Material | Polycarbonate |
| Storage Temperature | -40 to +85 °C |
| Typical battery life | 1 to 2 years |
| Recorder | start-up via magnet swipe or programmable auto start |
| LED’s | Green= active Red = Alarm |
| Response Time | T90 12 minutes in moving air (External sensors: 4 minutes) |
| Warranty | 24 months, excluding batteries |
