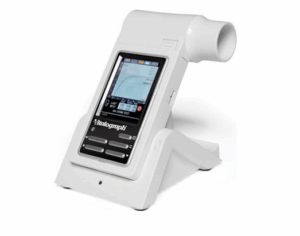

Vitalograph In2Iitive Spirometer
General
Vitalograph In2itive™ combines the benefits of full spirometry, data integration and mobility in a small lightweight handheld spirometer. Robust Fleisch flow measuring technology and a simple icon driven menu, plus a large, high resolution colour touch-screen and storage capacity for 10,000 subjects, makes In2itive the ideal solution for high quality spirometry on the move. Manual entry of subject data is optional as In2itive makes it possible to select all subject data from Spirotrac and download it automatically – saving time and eliminating data entry errors.
Features
- A Cradle for battery charging, connection to a PC and automatic data exchange saving time and eliminating errors
- Assured hygiene with removable flowhead, SafeTway mouthpieces or BVF Bacterial/Viral Filters
- Hours of battery life for a full day of off-site testing
- Over 50 test parameters
- Pre-post bronchodilator comparison
- Single and multi-breath
- F/V or V/T curves viewable in real time
- Choice of child incentives with sound effects
- Remote flowhead option enables the subject to view incentives while performing the test
- Icon driven menus
- Print via your PC or via Spirotrac or print direct to a USB
- 4/Letter size printer using optional printer cradle
- Range of accessories and robust carrying case
Specifications
| Product | In2itive Hand Held Spirometer |
|---|---|
| Model Number | 2120 |
| Subjects | Automatic population of database from Spirotrac. Name, ID; Age, Height, Gender; Smoking status, Body Mass Index and more depending on model. Storage of up to 10,000 subjects |
| Environmental Data | -Temperature (built in sensors), Barometric pressure, altitude, humidity |
| Test types | -Temperature (built in sensors), Barometric pressure, altitude, humidity |
| Selectable Parameters (depending on model) | VC; IVC; IC; VT (TV); TLC; RV; IRV; ERV; FRC; FVC; FIVC; FEV1; FEV3; FEV6; FVC; FEV1/VC; FEV1/FVC; FEV3/VC; FEV3/FVC; FEV1/FEV6; FEF75; FEF50; FEF25; FEF25-75; FEF25-75/FVC; FIV1; PIF, FIV1/ FIVC, FIF25, FIF50, |
| Predicted Values Selectable(depending on model) | ERS/ECCS; NHANES, Polgar, Pereira, Berglund, Forsche, Gutierrez, Hedenström, Taiwan; Knudson, Crapo; Hsu; KNLW; Viljanen; SEPAR; Gulsvik; SBPT; Tamura; Ip; Quanjer; Wang; Dockery and more |
| Suggested Interpretation | User selectable |
| Flow Technology | Fleisch Pneumotachograph (No3 size) |
| Resolution | 10 mL volume; 0.01 L/s flow |
| Data Storage | Stores up to 10,000 subjects and hundreds of test sessions |
| Accuracy when in Operating Range | Volumes: Better than ± 3% (Max 10L / Min 0L); Flows: Better than ± 10% (Max 16L/s / Min 0.02L/s); Linearity: ± 5% in range 0.1 L/s to 16 L/s |
| PowerSAFE™ | Input 100 – 240V AC 50-60Hz, output 5V DC |
| Battery Pack | Rechargeable Lithium Polymer 3.7v 2000mAH |
| Dimensions | -160mm x 100mm x 45mm (with flowhead attached) |
| Nett Weight | -230g Gross Weight and Size (Packed) Weight: 1.5kg, Packed Size: 213mm x 199mm x 158mm |
| Storage Humidity | 10% to 95% |
| Storage Temperature | 0 °C to 50 °C |
| Recommended Operating Temperature Range | 17 – 37 °C; Design Limits 10-40 °C |
| Ambient Humidity | 0% to 99% |
| Connectivity | |
| Max Test Duration | 20s FVC; 30s VC |
| Performance Standards | ISO 26782:2009; ISO 23747:2007; ATS/ERS 2005 |
| Safety Standards | IEC 60601-1:2005 |
| Medical Safety Standard | Medical Devices Directive 2007/47/EC |
| Designed & Manufactured | Under ISO 13485:2003, FDA 21CFR820, CMDR |
