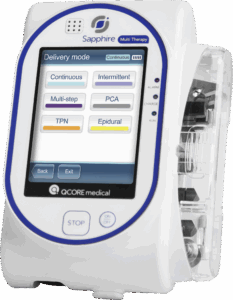

17000-028-0090 Qcore Sapphire Infusion Pump
General
The Sapphire Multi-Therapy infusion system is a complete solution for varied clinical uses in hospital, ambulatory and EMS settings. Offering ease of use and reliability, Sapphire combines high-end volumetric infusion pump functionality with compact size and low weight.
Sapphire is based on a unique combination of patented Flow Control Technology, innovative hardware design, intuitive touch-screen and software control, and low total cost of ownership.
With its robust design, easy maintenance, and built-in adaptability to evolving requirements, Sapphire delivers medication infusion confidence now, and far into the future. This same technology powers a wide range of dedicated infusion pumps, creating a single-platform that answers all medical infusion needs.
The Sapphire™ advanced multi-therapy infusion pump is designed for PCA, TPN, Continuous, Piggyback, Intermittent and Epidural treatments
Specifications
| Pump Type | Volumetric, single-channel, touch screen pump, Q Core Flow Control |
|---|---|
| Multi-Therapy Infusion Modes | Continuous, Multi-step, TPN, Intermittent, PCA, Epidural, and Secondary (Piggyback) |
| Dimensions | (H x W x D) 143 x 96 x 49 mm (5.63 x 3.78 x 1.93 in) |
| Transportation | Approved for air and ground medical transportation |
| Weight | 418 g (14.7 oz) without battery |
| Touch Screen | 3.2” colour portrait QVGA (64K colours) |
| Degree of Protection Against Ingress of Water and Dust | IP24 splash/dust standard according to IEC 60601-1-11 |
| Battery | Rechargeable Li-lon battery 7.4V 1960mA/h |
| Battery Operation Time | ~24 hrs @ 125 mL/h |
| Power Source | AC adaptor 100 – 240 VAC 50 – 60 Hz |
| Volume (VTBI) | 1 – 9,999 ml with increments of 0.1 mL |
| Flow Rate | 0.1-999 mL/h with increments of 0.1 mL/h |
| PCA Flow Rate | Basal rate 0.1-99.9 mL/h, Bolus rate up to 600 mL/h |
| Epidural Flow Rate | Basal rate 0.1-25 mL/h, Bolus / Dose rate 125mL/h or 200 mL/h |
| KVO Rate | Up to 20 mL/h with increments of 0.1 mL/h |
| Flow Rate Accuracy | ± 2.5% according to IEC 60601-2-24 |
| Disposable Set | Automatic anti-free-flow set |
| Downstream Occlusion | Up to 17.4 PSI (1.2 Bar) |
| Prime | Manual or automatic priming (600 or 900 mL/h) |
