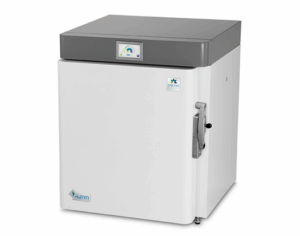

SU105U -85°C Ultra Low Storage Freezer (105 Litres)
General
The reliable SU105UE undercounter freezer is ideal for bench side personal storage or for use where larger volume ultra-low freezers remain underutilized.
The space-saving SU105UE delivers full performance ultra-low storage for benchtop, stacked installations or undercounter freezer setups.
With its widest temperature range in the industry, the SU105UE is the perfect solution for warming up samples and biologics in stages
SU105UE Benefits
- No compressors – Stirling Engine Technology
- Stable operation from -20°C to -86°C
- Plugs into any outlet worldwide
- Easily transportable
- Small footprint, efficient 3.7 cu.ft. (105 litre) interior
- Undercounter, benchtop, stackable
- No surge currents, no oil, low maintenance
Specifications
| Application | Storage of general (non-flammable) laboratory materials |
|---|---|
| Storage Volume | 105 liters (3.7 cu.ft.) |
| Storage Capacity | 72 standard 2″ boxes in drawer racks, optional, available |
| Temperature Range | -86ºC to -20ºC |
| Electric Power Universal power system | 120V or 240V single phase 50 or 60Hz |
| Maximum Power (Current) | 300 watts (3 amps @120V, 1.5 amps @240V) |
| Auto-Voltage Capability | 85V to 264V, 50 or 60 Hz |
| Electric Supply Rating | 15 amp or greater grounded circuit Power Plugs Supplied |
| NEMA 5-Interior (H x D x W) | 533 x 432 x 457 mm | (21 x 17 x 18 in.) |
| Exterior (H x D x W) | 864 x 711 x 686 mm | (34 x 28 x 27 in.) |
| Net Weight | Empty 99 kg (220 lbs.) |
| Shipping Dimensions (H x D x W) | 787.4 x 787.4 x 1041.4 mm | (31 x 31 x 41 in.) |
| Shipping Weight | 121 kg (266 lbs.) |
| Security | Lockable door Optional PIN requirement built in |
| Warm and Cold Alarms | Fully adjustable |
| Event Log | All alarms, door openings |
| Temperature Log | 30 days available graphically |
