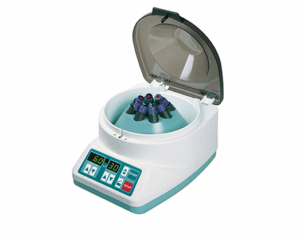

EBA200 Table Top Centrifuge for Medical Practices
General
The EBA 200, Hettich’s new, high-performance clinical centrifuge, offers simplicity and safety within a compact, elegant frame.
For convenient operation, the EBA 200 features a built-in, high-performance, 8-place, fixed-angle rotor and a bright, updated LCD display. The EBA 200 is ideal for small-batch clinical chemistry applications.
FEATURES
- Compact & powerful clinical tabletop centrifuge for standard blood, urine and pediatric tubes
Quiet Operation
Easy-Lift™
Safety-Lock™ Lid
The EBA 200 is a small centrifuge with a swing-out rotor especially designed for use in medical practices. It accepts common blood or urine tubes up to a volume of 15 ml and accelerates them to a maximum speed of 6,000 RPM.
Specifications
| Small centrifuge, with rotor Power supply | 208 – 240 V 1 ~ & 100 – 127 V 1 ~ |
|---|---|
| Frequency | 50 – 60 Hz |
| Consumption | 65 VA & 70 VA |
| Emission, Immunity | EN / IEC 61326-1, class B & FCC class B |
| Max. capacity | 6 x 15 ml |
| Max. RPM (speed) | 4,000 min-1 |
| Max. RCF | 2,254 |
| Running time | 1 sec – 99 min : 59 sec, ∞ continuous run, short cycle mode (impulse key) |
| Dimensions (H xWx D) | 239 x 326 x 389 mm |
| Weight | Approx. 13 kg |
